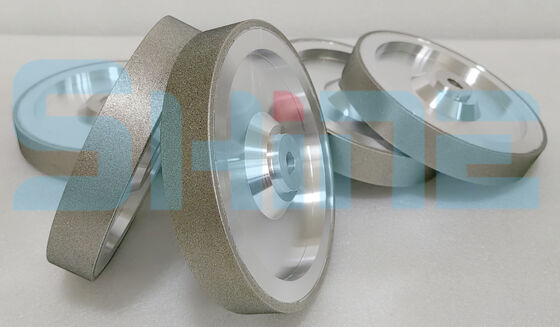

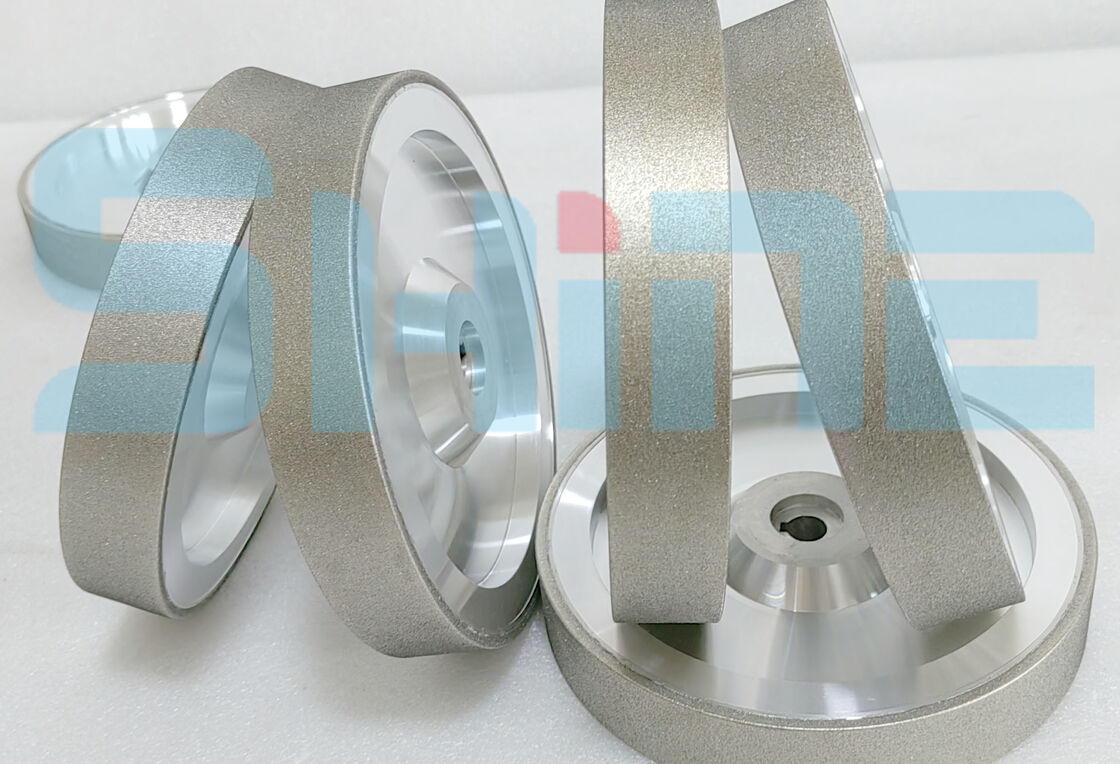

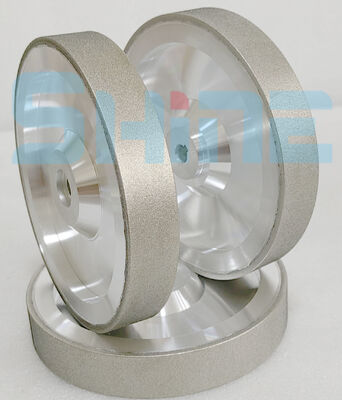

Name: 1A1 Electroplated Diamond Surface Grinding Wheel 200mm D126 for Alumina Zirconia Silicon Carbide Ceramic Processing
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 1A1-200-D126
Price: 130.00 USD
Availability: InStock

Casa Prodotti Diamond Wheels placcato

1A1 Electroplated Diamond Surface Grinding Wheel 200mm D126 for Alumina Zirconia Silicon Carbide Ceramic Processing

Dettagli:

Luogo di origine:	Henan, Cina
Marca:	WNRLN
Certificazione:	ISO 9001:2015
Numero di modello:	1A1-200-D126

Termini di pagamento e spedizione:

Quantità di ordine minimo:	5 pezzi
Prezzo:	USD 80-180 / Piece
Imballaggi particolari:	Scatola con marchio WNRLN con inserto protettivo in schiuma, cartone ondulato per esportazione
Tempi di consegna:	3-5 giorni lavorativi per stock, 15-20 giorni per produzione
Termini di pagamento:	T/T,L/C,PayPal,Western Union
Capacità di alimentazione:	10000 pezzi al mese

Contatto

Descrizione di prodotto dettagliata

Forma della ruota:	1A1 (Piatto)	Diametro:	200mm
Dimensione della grinta:	D126	Tipo di obbligazione:	di polietilene
Materiale abrasivo:	diamante sintetico	Materiali applicabili:	Allumina (Al₂O₃), Zirconia (ZrO₂), Nitruro di silicio (Si₃N₄), Carburo di silicio (SiC)
Durezza:	Mohs 10	Numero di giri massimo:	3500 giri al minuto
Arbor Hole:	32 mm
Evidenziare:	electroplated diamond grinding wheel 200mm , diamond surface wheel for ceramic processing , D126 grinding wheel for alumina zirconia

Product Overview

The 1A1 Electroplated Diamond Grinding Wheel 200mm D126 is a premium abrasive solution engineered for precision machining of hard brittle ceramic materials. Leveraging the exceptional hardness of synthetic diamond (Mohs 10), this grinding wheel maintains stable cutting performance across the most demanding industrial applications.

Key Advantages

Superior Diamond Hardness for Hard Brittle Ceramics

Diamond ranks at the highest level of the Mohs hardness scale among all natural and synthetic materials. This unmatched hardness enables our electroplated diamond grinding wheel to effectively process the full range of advanced technical ceramics:

Ceramic Material	Key Characteristics	Processing Performance
Alumina (Al₂O₃)	High compressive strength, excellent electrical insulation	Clean, precise grinding with minimal micro-cracking
Zirconia (ZrO₂)	Transformation-toughened, superior fracture resistance	Stable cutting force maintained throughout entire operation
Silicon Nitride (Si₃N₄)	High strength at elevated temperatures, thermal shock resistant	Consistent performance without thermal degradation
Silicon Carbide (SiC)	Extreme hardness (second only to diamond), high thermal conductivity	Sustained abrasive sharpness and long service life

Technical Specifications

Wheel Shape: 1A1 (Flat peripheral grinding wheel)
Diameter: 200mm
Grit Size: D126 (medium-coarse grit for balanced material removal and surface finish)
Bond Type: Electroplated nickel bond, single layer diamond deposition
Arbor Hole: 32mm standard
Max Operating Speed: 3500 RPM
Abrasive Material: High-grade synthetic diamond

Applications

Precision surface grinding of alumina ceramic substrates and components
Cylindrical grinding of zirconia ceramic rods and tubes
Profile grinding of silicon nitride bearing elements
Edge chamfering and finishing of silicon carbide seals and wear parts
Tool and die grinding for ceramic processing equipment

Quality Assurance

Every grinding wheel undergoes rigorous quality control including dimensional inspection, grit distribution analysis, and rotational balance testing. Manufactured under ISO 9001:2015 certified processes, our electroplated diamond wheels deliver consistent, reliable performance batch after batch.

Contact our technical sales team today to discuss your specific ceramic grinding requirements. We offer custom grit sizes, dimensions, and specifications to meet your exact application needs.
