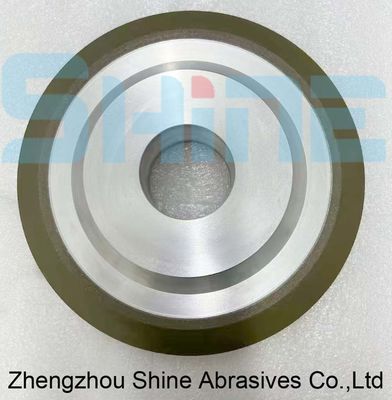

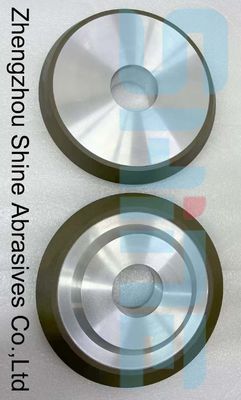

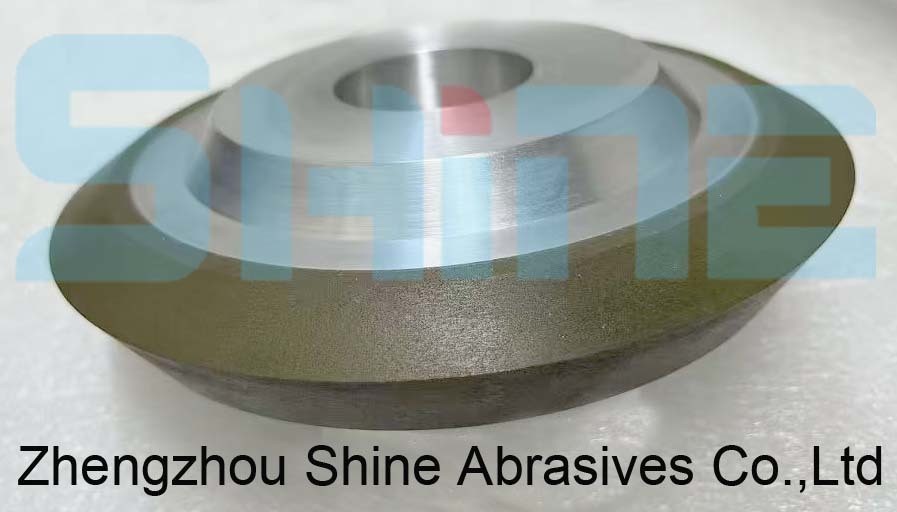

Name: Hybrid bond CNC diamond wheel for high-performance flute grinding
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 1v1
Price: 50.00 USD
Availability: InStock

Casa Prodotti Macchine per la macinazione a CNC

Hybrid bond CNC diamond wheel for high-performance flute grinding

Dettagli:

Luogo di origine:	Cina
Marca:	Shine Abrasives
Certificazione:	ISO
Numero di modello:	4V2 1A1 14A2 1v1

Termini di pagamento e spedizione:

Quantità di ordine minimo:	2 pezzi
Prezzo:	FOB
Imballaggi particolari:	uno in scatola di carta
Tempi di consegna:	5 giorni di lavoro
Termini di pagamento:	L/c, t/t
Capacità di alimentazione:	1000 PCS in una settimana

Contatto

Descrizione di prodotto dettagliata

Applicazione:	Macchine CNC	Velocità:	6000 giri / min
Colore:	Argento	Pressione massima:	5MPA
Misurare:	6 pollici	dimensione del pergolato:	A 7/8 pollici
Temperatura massima:	150°C	Dimensione del bordo di diamante:	6x6mm
Tipo di obbligazione:	Ibridi	Legame:	Resina
Codice HS:	6804211000	Efficienza:	VELOCE
Velocità massima:	100 m/s	Max Rpm:	6000 giri / min
Durezza:	Alto
Evidenziare:	Hybrid bond CNC diamond wheel , CNC flute grinding wheel , high-performance diamond grinding wheel

Hybrid bond CNC diamond wheel for high-performance flute grinding

Hybrid bond CNC diamond wheel for high-performance flute grinding.Hybrid bond is Resin Bond, Metal Bond, and or processing methods to create a Hybrid that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.

Wheel sizes form:

Diameter of D	Diamond depth of U	R	X	H
50mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
75mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
100mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
125mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
150mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
175mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
200mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize

Others sizes are available per requested.

*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools

*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents

*The particle size can reach up to 10000#

*Cutting edge quality less than 5 microns

*Provide dressing wheels to trim PCD grinding wheels
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.
